Plate Girder Fabrication Startup Costs For A 320-Girder Year 1 Shop

Key Takeaways

• Separate facility rent from tenant improvements and crane systems.
• Size plate equipment to girder mix and throughput.
• Treat coating choice as a CAPEX and permitting decision.
• Budget quality and compliance before first shipment.

Estimate Startup Costs with Calculator

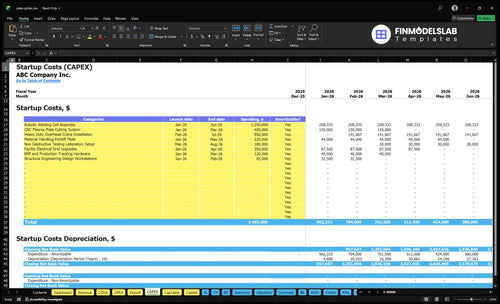

Does this screenshot show startup CAPEX?

This screenshot shows startup CAPEX in Plate Girder Fabrication Financial Model Template. Review categories, launch timing, amounts, and depreciation or amortization; open it and adjust assumptions.

Key screenshot highlights

• CAPEX and startup schedules
• Working capital and debt
• 320 and 720 girders

PREVIEW

Plate Girder Fabrication Financial Model

• 5-Year Financial Projections
• 100% Editable
• Investor-Approved Valuation Models
• MAC/PC Compatible, Fully Unlocked
• No Accounting Or Financial Knowledge

GET TEMPLATE

What are the biggest cost drivers in plate girder fabrication?

Plate Girder Fabrication is usually driven first by the shop footprint and heavy equipment, not just labor. The $45,000 monthly facility lease is the occupancy anchor, and the biggest adds are overhead cranes, crane rails, long high-bay space, reinforced floors, power upgrades, and installation.

From there, cost scales with thickness capacity, girder length, bay count, and throughput; CNC plate cutting, drilling, submerged arc welding systems, fit-up fixtures, heavy material handling, blast and paint scope, and in-house coating all push CAPEX and operating cost up. More automation lowers bottleneck risk, but it also raises upfront CAPEX.

Fixed shop costs

• $45,000 monthly lease anchor
• Overhead cranes and crane rails
• Long high-bay fabrication space
• Reinforced floors and power upgrades

Process cost drivers

• CNC cutting and drilling
• Submerged arc welding systems
• Blast and paint scope
• In-house coating and material handling

What hidden costs of starting a plate girder fabrication business get missed?

The hidden cost in Plate Girder Fabrication is that cash gets tied up before the first invoice: steel plate deposits, welding consumables, coating materials, fasteners, cutting gas, certified weld procedure documentation, American Institute of Steel Construction (AISC) qualification work, state transportation prequalification work, nondestructive testing relationships, calibration, insurance, safety programs, environmental controls, bid preparation, and payroll before revenue. For the split between startup, operating, and contract costs, see What Are Operating Costs For Plate Girder Fabrication? One month of input materials can run about $363k, first-year unit inputs can be $9,600 to $23,200 per girder, and a known CEO plus two senior structural engineers cost $510k per year before benefits.

Upfront cash

• Steel deposits hit cash early.
• Payroll starts before revenue.
• Bid prep is paid upfront.
• Receivables can lag shipments.

Project load

• Welding and coating add cost.
• Fasteners and cutting gas add cost.
• NDT and calibration are recurring.
• Safety and environmental controls stay on.

How do you fund a plate girder fabrication startup?

Plate Girder Fabrication gets funded when the model proves lender readiness, not just demand: the file needs a use-of-funds plan, CAPEX schedule, working capital forecast, certification timeline, receivables assumptions, and debt-service capacity. Here’s the quick math: $60,900 in monthly fixed costs is $730,800 a year, and Year 1 assumes 70% variable revenue costs for heavy haul logistics, freight, commissions, and bid fees, so gross margin logic has to hold before debt. Anchor the ramp at $380M in Year 1 and $1,003M in Year 5, across 320 to 720 girders, and keep a contingency for slower certifications or slower collections.

Lender-ready inputs

• Use of funds, line by line
• CAPEX timing by month
• Working capital forecast
• Certification timeline and milestones

Payback proof

• $380M Year 1 ramp
• $1,003M Year 5 ramp
• 70% variable cost load
• Debt service and receivables timing

Calculate Fuding Needs

Plate Girder Fabrication Core Five Startup Costs

Facility, Site, And Heavy Material Handling Startup Expense

Site shell

High-bay fabrication space is a setup cost, not rent. Split lease deposits, tenant improvements, crane systems, and monthly rent; anchor occupancy at $45,000/month. Size it from bay length, clear height, column spacing, crane tonnage, truck access, yard space, power, ventilation, and landlord allowance.

Sizing inputs

Estimate with quoted square feet, months of deposit, crane rail length, bridge crane tonnage, floor reinforcement, utility upgrades, and outdoor laydown area. The cost jumps when bay length or clear height rises, so ask for separate numbers for the shell, the crane package, and leasehold work.

• Bay length and clear height
• Crane tonnage and rail length
• Truck access and laydown area

Keep costs clean

Push for a quote that splits lease deposits, tenant improvements, crane systems, and $45,000 monthly rent. That keeps CAPEX separate from occupancy cost and makes landlord concessions easier to compare. If the building needs stronger floors, crane rails, ventilation, or more power, price those as one-time project items, not rent.

Ask the landlord

Get the lease quote to show deposit, monthly rent, improvement allowance, and any crane rail or floor work separately. Then price the shell against the operating anchor and keep the one-time buildout from getting buried in the monthly number.

Plate Processing Equipment Startup Expense

Plate Line Scope

A plate processing line for girder work has to cut, bevel, drill, mark, and prep heavy plate for webs, flanges, stiffeners, and connection details. That usually means CNC plate cutting, oxy-fuel or plasma capacity, plate handling, fume control, software links, installation, training, and spare parts. One setup won’t fit every shop.

What Drives Cost

Price depends on plate thickness, table size, throughput, automation, and power demand. Ask for quotes based on the heaviest plate you plan to process, the cut volume per shift, and whether drilling and marking are built in or separate. For a year-one mix of 320 girders, the machine spec should match the real shop flow.

• Check max plate thickness
• Confirm table length and width
• Price power and install work

How To Control Spend

Buy only the capability your first year needs, then expand later if throughput rises. The main mistake is oversizing automation before you know cut volume and plate mix. Get quotes that split machine, install, training, and spare parts, so you can compare true startup cost and avoid paying for idle capacity.

• Separate machine from installation
• Train on one standard process
• Keep spare parts on hand

Year-One Capacity Fit

A line sized for 120 standard, 80 curved, 50 hybrid, 40 box, and 30 variable depth girders needs enough cut accuracy and handling speed to keep fit-up moving. The right spend is the one that matches thickness, table size, and power service to that mix, not the one with the biggest feature list.

Welding, Fit-Up, And Assembly Startup Expense

Weld Cell Setup

This cost covers the weld line that turns fit-up into finished girders: submerged arc welding systems, welding tractors, rotators or turning rolls, fit-up fixtures, tack stations, power sources, fume extraction, welding leads, consumables setup, and starter spares. For startup sizing, tie quotes to the first build mix and the model’s $850 to $2,100 consumables per girder, with total input cost at $9,600 to $23,200 per girder.

Cost Build

Estimate it by counting each weld station, tractor, turning roll, power source, extraction unit, and fixture set, then multiply by vendor quote plus install and training. Add initial consumables and spares for the first production run. This is a startup-readiness line item, so it sits beside plate processing and quality spend, not inside monthly labor or overhead.

Spend Control

Cut spend by standardizing fixture sizes, buying only the stations needed for the first girder mix, and getting one integrated quote for power, leads, and extraction. Do not overbuy spares or add extra automation before the process is proven. The biggest mistake is buying for peak volume on day one; match equipment to launch volume.

Readiness Gate

Include welder qualification and weld procedure work only when they are needed to open the shop and release the first jobs. Count test coupons, procedure qualification, inspection time, and any outside lab or code support as startup cost. Keep that scope tight; it supports launch, but it should not turn into a recurring productivity assumption.

Blast, Paint, Coating, And Environmental Control Startup Expense

Coating Scope

If you're deciding between in-house coating and outsourcing, start there first. In-house adds blast rooms, dust collection, paint booths, cure space, inspection tools, ventilation, containment, waste handling, and compliance work. Outsourcing lowers CAPEX, but it adds freight, scheduling risk, and quality-control checks.

Cost Inputs

Build the estimate from girder count, surface area, and coating spec. Use $1,200 to $2,800 per girder as the coating-material anchor, then add blast and control equipment for the chosen volume. Bigger bridge girders need more prep time, more space, and tighter inspection, so size the budget to your actual product mix.

• Count girders by contract
• Price by coating spec
• Match space to girder size

Lower CAPEX

Use outsourced coating if you want a lower upfront build and faster launch. Just lock freight, turnaround time, and inspection hold points in writing. The usual mistake is buying too much environmental control too early, or missing waste handling and permit work. Keep the scope tight until volume proves the need.

Launch Timing

In-house coating can push opening dates because ventilation, containment, and compliance must be ready before first production. Outsourced coating shifts that burden off-site, so the shop can start with less floor space and fewer permits. If you do coat inside, confirm airflow, waste routes, and cure space before you sign the lease.

Quality, Certification, Compliance, And Startup Readiness Startup Expense

Readiness Gates

QA manuals, welding procedure specifications, procedure qualification records, welder quals, calibration, NDT, safety, insurance, legal work, and audit support sit in this startup line. Treat American Institute of Steel Construction (AISC) certification and state Department of Transportation prequalification as gates, not promises; approval changes by project and state.

Cost Drivers

Build the budget from quality control testing at 0.8% of revenue, facility insurance at 0.4% of revenue, and $4,000 per month for legal and audit fees. Add quotes for inspection tools, calibration, NDT providers, and pre-opening compliance hours. This spend hits before first shipment, so cash needs to be real.

Trim Spend

Keep cost down by using one document set, one calibration log, and outside NDT only where code requires it. Phase certification work against the first jobs, and don’t buy every tool before the scope is fixed. The savings usually come from timing and scope control, not from cutting required testing.

Cash Risk

Use the facility insurance premium category as a fixed monthly anchor, then layer compliance labor on top. If audit support or weld-record cleanup runs long, burn rises fast. One clean rule: no bid should assume AISC or DOT approval until the reviewer confirms it in writing.

Compare 3 Startup Cost Scenarios

Startup cost scenarios

Lean, Base, and Full shift the cost base fast because this business swings on plant equipment, steel inventory, and in-house finishing. The table compares a demand test, a core shop, and a full bridge-fabrication platform.

EXPORT XLSX

Lean, Base, and Full startup cost bands for plate girder fabrication.

Scenario	Lean LaunchProof of demand	Base LaunchPractical launch	Full LaunchFull bridge platform
Launch model	Use subcontracted finishing and a small in-house team to prove demand with less cash.	Run a core in-house fabrication line that matches the model's Year 1 volume of 320 girders.	Build the whole bridge-fabrication stack in-house to support higher throughput and more complex jobs.
Typical setup	Leased space, outsourced blast and paint, and basic cutting and welding keep the first build light.	A core fabrication shop handles cutting, welding, QA, and the first 320 girders with standard automation.	A fully equipped plant adds large cranes, robotic processing, in-house blast and paint, and stronger QA.
Cost drivers	Leased facility outsourced blast and paint lower automation smaller inventory tighter working capital	CNC cutting and welding quality control testing standard steel inventory factory utilities monthly fixed costs	Robotic welding heavy crane installation in-house blast and paint NDT lab larger steel inventory
Planning rangeCAPEX only	$2.0M - $3.0MDemand test band	$4.0M - $5.0MCore launch band	$6.0M - $8.0MFull build band
Best fit	Best for founders testing bids, supplier flow, and local demand before a bigger build.	Best for operators ready to launch a real shop with steady project flow and controlled capital use.	Best for teams with confirmed backlog, strong permits, and enough cash for a full plant.

!

Planning note: These scenario ranges are researched planning assumptions, not exact vendor quotes or bids.
