Leaf Spring Manufacturing Startup Cost: $16M+ Funding Plan
Leaf Spring Manufacturing Company
A US leaf spring manufacturing company should plan for at least $895,000+ in listed startup CAPEX and about $16M+ in total launch funding before corrected testing-rig cost, deposits, financing fees, and reserves This first operating year model separates equipment and facility setup from inventory, payroll runway, and early ramp-up cash needs
Estimate Startup Costs with Calculator
Startup CAPEX Calculator
Estimates capitalized startup assets only for a leaf spring manufacturing plant, including equipment, facility work, and contingency.
!
What this excludes Excludes inventory, payroll runway, deposits, debt service, working capital, receivables, financing fees, and other operating costs. It covers only capitalized startup assets and contingency.
What equipment is needed to manufacture leaf springs?
To make leaf springs, Leaf Spring Manufacturing Company needs cutting, punching, eye rolling, cambering, forging or forming, heat treatment, shot peening, coating, assembly, inspection, and fatigue testing equipment. Here’s the quick math: the big-ticket base is a $450,000 heavy-duty forging press, a $320,000 heat treatment furnace system, and a $125,000 CNC steel cutting table, plus a fatigue and stress testing rig. In-house heat treatment raises CAPEX, but it gives tighter process control; outsourcing it can cut upfront spend, but it usually adds unit cost, freight, lead time, and rework risk.
Core equipment line
CNC steel cutting table: $125,000
Heavy-duty forging press: $450,000
Heat treatment furnace system: $320,000
Fatigue and stress testing rig: price not given
Process steps to cover
Cutting and punching
Eye rolling and cambering
Shot peening and coating
Assembly, inspection, fatigue testing
How to plan funding for a leaf spring manufacturing company?
Leaf Spring Manufacturing Company funding should start with capacity, not the pitch: use 12,450 units in Year 1 and about $524M in revenue as the base case, then layer in equipment quotes, depreciation, gross margin, customer ramp, and cash conversion cycle so lenders can see when cash turns. Here’s the quick math: $524M / 12,450 implies about $42,090 per unit, so the model should show how CAPEX, startup costs, inventory days, payment terms, and warranty exposure hit break-even timing. Keep the financial model as the planning bridge, not the sales story.
Lender review
Show CAPEX schedule by date
List startup expenses clearly
Map inventory days to cash need
State customer payment terms
Investor review
Use unit economics for margin
Include depreciation in returns
Flag warranty exposure up front
Show break-even timing by ramp
How much funding do you need to start a leaf spring manufacturing company?
A Leaf Spring Manufacturing Company needs about $1,624,025 in known startup funding before deposits, debt reserves, the corrected testing-rig cost, and customer-credit cash drag; see How To Launch Leaf Spring Manufacturing Company? for the launch path. Here’s the quick math: $895,000 CAPEX + $512,400 six-month runway + $216,625 inventory working capital.
Known Funding Need
$895,000 listed equipment CAPEX
Testing-rig amount is still incomplete
$36,900 monthly fixed costs
$582,000 Year 1 payroll
Cash Buffer Items
$512,400 six-month operating runway
$216,625 three-month direct-cost inventory
$866,500 annual direct unit costs
Working capital means cash tied up
Calculate Fuding Needs

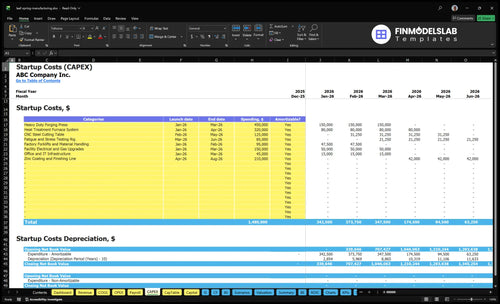

Startup cost summary
This table shows startup CAPEX and excluded cash needs for a leaf spring manufacturing plant.
Highlighted CAPEX$1,480,000Base planning example
Excluded cash needs$625,000Outside CAPEX total
Funding need$2,105,000CAPEX + excluded cash needs
Cost Category
Base Estimate
Main Cost Driver
CAPEX Calculator
Production Machinery
$575,000
Forging press and CNC cutting table.
Yes
Heat Treatment and Finishing
$530,000
Furnace system and zinc coating line.
Yes
Quality Control Equipment
$85,000
Fatigue and stress testing rig.
Yes
Facility and Utilities Upgrades
$195,000
Electrical, gas, and IT upgrades.
Yes
Material Handling and Setup
$95,000
Forklifts and plant handling gear.
Yes
Working Capital Reserve
$625,000
Payroll, receivables lag, and launch cash.
No
Leaf Spring Manufacturing Company Core Five Startup Costs
Production Machinery Startup Expense
Forge Line
$450,000 for the heavy-duty forging press and $125,000 for the CNC steel cutting table are the anchor buys. The line still needs cut, punch, roll-eye, form, camber, forge, and assembly capacity. Final capex swings with new vs. used, automation, install, tooling fit, and the output mix.
What It Covers
Price each station separately. Get quotes for the press, table, tooling, install, and commissioning, then map each machine to throughput by product type. Year 1 output is 4,200 Heavy Duty Multi Leaf units, 3,500 Trailer Spring Assembly units, 2,100 Parabolic Leaf Spring units, 1,800 Helper Spring Kits, and 850 Custom Forged Main Leafs.
Buy Smart
Don’t overbuy automation before the SKU mix settles. A used machine can cut cash outlay, but only if tooling is compatible and install time stays short. The cheap machine that needs a retrofit can delay launch more than a pricier new unit. The goal is steady throughput, not excess equipment.
Throughput First
The forging press matters most for the 850 Custom Forged Main Leafs, while the rest of the mix depends on balanced cutting, forming, cambering, and assembly. If one station runs slower than the others, WIP builds up fast and cash gets trapped in half-finished parts.
Facility and Utilities Startup Expense
Site Fit
For a leaf spring plant, the site has to match the process. You need floor loading, power service, ventilation, compressed air, cranes, loading docks, safety aisles, fire protection, equipment foundations, and clean material flow. Treat buildout and rigging as startup cost, not rent, so the opening budget is honest.
Monthly Burn
The recurring base is $18,500 for the manufacturing facility lease, $6,200 for industrial utilities, $3,800 for liability and property insurance, and $1,400 for ERP and inventory software. That is $29,900 per month before labor, materials, and freight.
Control Cost
Keep the spend down by matching the building to the process, not the other way around. Compare quotes for power upgrades, crane access, dock layout, and foundation work before you sign. A bad layout can add moving time, extra handling, and rework, and that burns cash fast.
Commissioning Risk
An underpowered or poorly laid-out facility can delay commissioning even when the machinery is already on site. That means idle equipment, delayed output, and extra carrying cost on purchased assets. The quick test is simple: if the plant cannot support load, power, and flow on day one, it is not ready.
Heat Treatment and Finishing Startup Expense
Heat Treat Line
A heat-treat line is a big first spend: the quench and temper furnace system alone is $320,000. Add stress relieving, shot peening, coating, rust protection, and finish inspection to support heavy spring parts, or outsource it all. That choice sets startup cash need and how much control you keep over quality.
Unit Cost Math
Estimate this cost from energy per unit and coating material by product line. Source unit energy is $8, $6, $10, $4, and $12; zinc coating material is $4, $3, $5, $2, and $6. Multiply by Year 1 mix and add labor, scrap, and inspection time. This line sits in cost of goods sold, not just CAPEX.
Outsource Risk
Outsourcing shifts spend off the balance sheet, but it shows up in vendor bills, freight, longer lead times, and batch scheduling risk. That can save the $320,000 furnace outlay at launch, but you lose queue control and turnaround speed. For fleet and trailer orders, delays can hit delivery dates fast.
Finish Checks
Keep finish quality tight with paint or zinc, rust protection, and final inspection records. If a coating miss shows up after shipment, you pay twice: rework and freight back. The practical rule is simple: test every batch, then scale volume only when coating thickness and cosmetic standards hold.
Tooling, Dies, and Engineering Startup Expense
Tooling Scope
Tooling is not one buy. Each spring geometry, width, thickness, camber, eye design, load rating, and SKU can need its own dies, punching tools, forming fixtures, inspection gauges, drawings, prototypes, and validation runs, so the budget should track the five product lines and the 12,450 unit Year 1 mix.
Estimate Inputs
This cost covers setup work before steady production starts. Use 5 product lines, their unit counts, supplier quotes, and the number of tool sets per SKU to build the estimate. Year 1 volume is 4,200 Heavy Duty Multi Leaf units, 3,500 Trailer Spring Assembly units, 2,100 Parabolic Leaf Spring units, 1,800 Helper Spring Kits, and 850 Custom Forged Main Leafs.
Count one tool set per unique SKU.
Include prototypes and validation runs.
Price revisions before launch.
Control The Spend
Do not use a flat tooling allowance. The better plan is to group shared geometry where you can, then quote only the unique die, gauge, and fixture work. Common parts across the five lines can cut duplicate spend, but trying to force one tool across different loads or camber specs usually raises scrap and rework.
Standardize shared dimensions first.
Separate custom from repeat SKUs.
Budget for sample scrap and rework.
Revision Risk
Customer qualification can change drawings or tolerances after trial production, and that means revised dies, new gauges, and another validation loop. If the spec shifts after samples pass, the tooling budget needs room for rework, because one late change can hit every affected SKU in the first run.
Quality Control, Compliance, and Inventory Startup Expense
QC Budget
This startup cost covers hardness testing, fatigue and stress testing, dimensional checks, calibration, inspection records, qualification samples, packaging, permits, insurance, safety programs, and spring steel inventory. The fatigue and stress testing rig has an incomplete dollar value, so that line must be corrected before final funding. Quality control testing adds 0.5% of revenue, and waste management adds another 0.5%.
Cost Build
Budget this from the inputs you can verify: test frequency, sample count, months of inventory, and vendor quotes for packaging and compliance work. The source says annual direct unit costs total about $866,500, so three months is about $216,625 ($866,500 ÷ 4). That is the working cash need before you add any missing rig price.
Use 3 months for launch cash.
Quote tests before ordering steel.
Fix the rig line item first.
Control Spend
Keep this cost down by sampling on a tight plan, locking inspection records early, and buying only the spring steel needed for the first build window. Don’t cut calibration, safety, or permit work; those protect launch timing. The biggest waste risk is overbuying inventory before quality system readiness is locked.
Stage inventory in small lots.
Batch tests by product family.
Delay extras, not compliance.
Readiness Check
Before funding closes, confirm the quality system is ready for inspection records, sample retention, calibration logs, and customer qualification runs. If the facility is stocked but the test plan or permits are late, cash sits in steel and packaging while shipments slip. That delay hits fleets fast, because downtime is the real cost.
Compare 3 Startup Cost Scenarios
Startup cost scenarios
Startup cost shifts fast as you change SKU count, heat treatment, finishing, testing, and automation. Lean stays light, Base matches the source model, and Full pushes scale with more equipment and inventory.
Lean, Base, and Full launch paths show how capacity and in-house work change startup cost.
Scenario
Lean LaunchLowest CAPEX
Base LaunchBalanced control
Full LaunchHighest scale
Launch model
Lean uses limited SKUs and outsources heat treatment and finishing.
Base follows the source model with listed in-house equipment and Year 1 production of 12,450 units.
Full adds higher-capacity automated production with broader tooling, finishing, testing, and handling.
Typical setup
Typical setup keeps core forming and basic quality checks in-house.
Typical setup includes forging, heat treatment, cutting, testing, handling, and finishing in-house.
Typical setup expands automation, test depth, and storage to support higher throughput.
Cost drivers
Fewer SKUs
outsourced finishing
outsourced heat treatment
smaller inventory
lighter tooling
In-house heat treatment
broader SKU mix
test rig depth
material handling
base inventory
Automation
wider SKU count
deeper testing
larger inventory
expanded handling
Planning rangeCAPEX only
Below base buildBudget-first setup
$895,000+Source model base
Above base buildScale-first build
Best fit
Best for founders who want the lowest upfront spend and can accept less in-house control.
Best for operators who want direct process control and a clean match to the source model.
Best for teams that need higher output and can fund a larger, more complex plant build.
!
Planning note: These scenario ranges are planning assumptions, not exact vendor quotes, and the Base figure reflects the source model before the incomplete testing-rig value is corrected.
The model lists at least $895,000 of startup CAPEX before the incomplete fatigue and stress testing rig value is corrected The listed items are a $450,000 heavy duty forging press, a $320,000 heat treatment furnace system, and a $125,000 CNC steel cutting table Total funding rises once runway, inventory, deposits, and customer-credit needs are added
The data starts operations in Month 1 and models equipment spending through Month 6, so the early ramp-up period should be treated as cash-heavy Year 1 production totals 12,450 units across five product lines Stability depends on installation, furnace commissioning, tooling revisions, inspection results, and customer qualification timing
No, but the modeled setup includes in-house heat treatment through a $320,000 furnace system Keeping it in-house can improve process control for strength, hardness, and repeatability Outsourcing can reduce upfront CAPEX, but it may add vendor cost, freight, batching delays, and more working capital tied up in unfinished parts
The modeled Year 1 mix spreads risk across five lines: 4,200 Heavy Duty Multi Leaf units, 3,500 Trailer Spring Assembly units, 2,100 Parabolic Leaf Spring units, 1,800 Helper Spring Kits, and 850 Custom Forged Main Leafs That mix supports about $524M in Year 1 revenue, but more SKUs also mean more tooling, fixtures, and validation work
Plan beyond machinery because payroll, rent, utilities, steel, and receivables start early Six months of modeled fixed costs and wages equals about $512,400, based on $36,900 in monthly fixed costs and $582,000 in Year 1 payroll Three months of direct unit-cost inventory adds about $216,625 before customer payment delays
